Referring to Figure 1, imagine a beam of light represented by the two green rays incident on the binary (rectangular profile) grating shown. Constructive interference leads to the grating equation: Figure 1
#DIFFRACTION GRATING SERIES#
If the surface irregularity is periodic, such as a series of grooves etched into a surface, light diffracted from many periods in certain special directions constructively interferes, yielding replicas of the incident beam propagating in those directions. When light is incident on a surface with a profile that is irregular at length scales comparable to the wavelength of the light, it is reflected and refracted at a microscopic level in many different directions as described by the laws of diffraction. Diffraction Grating Handbook (7 th edition).Gratings are based on diffraction and interference:ĭiffraction gratings can be understood using the optical principles of diffraction and interference. Some of these trade-offs can be assessed with the Andor resolution calculator for Kymera and Shamrock Czerny-Turner spectrographs. These influence the choice of grating line density, blaze angle/wavelength, master (different masters for a given line density and blaze angle yield different efficiency and polarisation characteristics) and grating size.Įxpected spectral resolution and simultaneous bandpass are also influenced by how light is coupled into the spectrograph, the central wavelength of interest and associated grating “working angle”, as well as the detector pixel array format at the output plane. The key parameters to consider when selecting a grating for a given application are the required spectral resolution (in order to identify efficiently chemical signatures or monitor subtle spectral features behaviour changes), the wavelength range of interest, the simultaneous bandpass (the wavelength range projected at the focal plane of the spectrograph during a single detector acquisition), the incoming signal polarization and the spectrograph F/#.

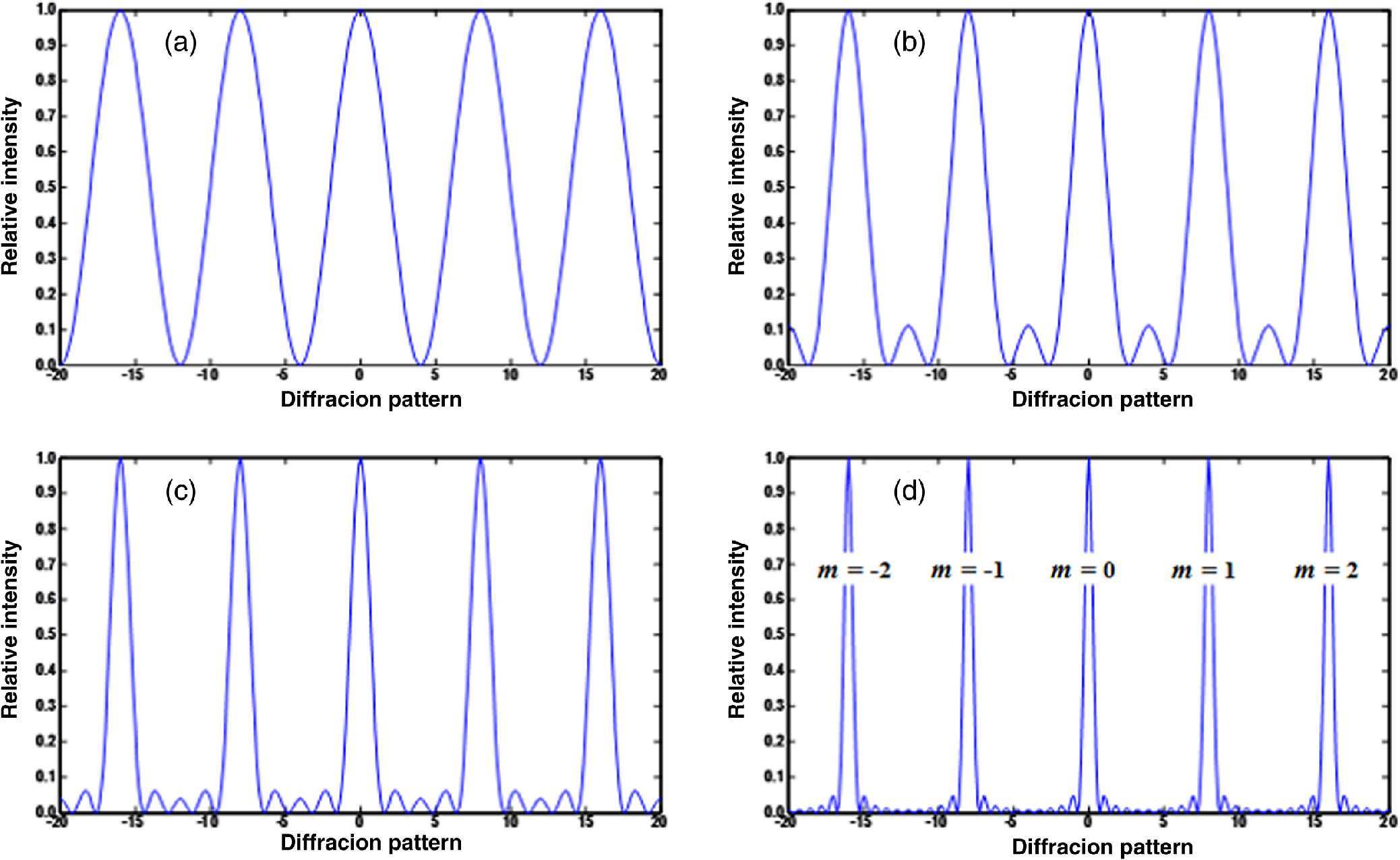

Selecting a Grating for a Czerny-Turner Spectrograph Usually the first order lines (n=1 or n=-1) are the most intense. n = -1, -2 etc.) Higher orders may also appear, but these decrease in intensity. As well as positive orders, light can also be diffracted in the opposite direction (i.e. The diagram above shows the orders of the diffracted wavelength. Where: n is the order of diffraction, λ is the diffracted wavelength d is the grating constant (the distance between successive grooves) θ i is the angle of incidence measured from the normal and θ d is the angle of diffraction measured from the normal. The dispersion of a grating is governed by the grating equation, usually written as:
Gratings are generally better than prisms - they are more efficient, they provide a linear dispersion of wavelengths and do not suffer from the absorption effects that prisms have which limits their useful wavelength range. The dispersion and efficiency of a grating are dependant on the distance between adjacent grooves and the groove angle. The shape of the grooves (blaze angle) influences what wavelength range the grating is best optimised for. The shape of the grooves (blaze angle) influences what wavelength range the grating is best optimised for.
Gratings consist of equally spaced parallel grooves, formed on a reflective coating and deposited on a substrate. The dispersed light is then re-imaged by the spectrograph and the required wavelength range is directed to a detection system. The dispersion arises from the wavefront division and interference of the incident radiation from the periodic structure of the grating. The polychromatic light incident on the grating is dispersed so that each wavelength is reflected from the grating at a slightly different angle. What are Diffraction Gratings & Diffraction Uses?Ī diffraction grating is an optical element, which separates (disperses) polychromatic light into its constituent wavelengths (colors).
